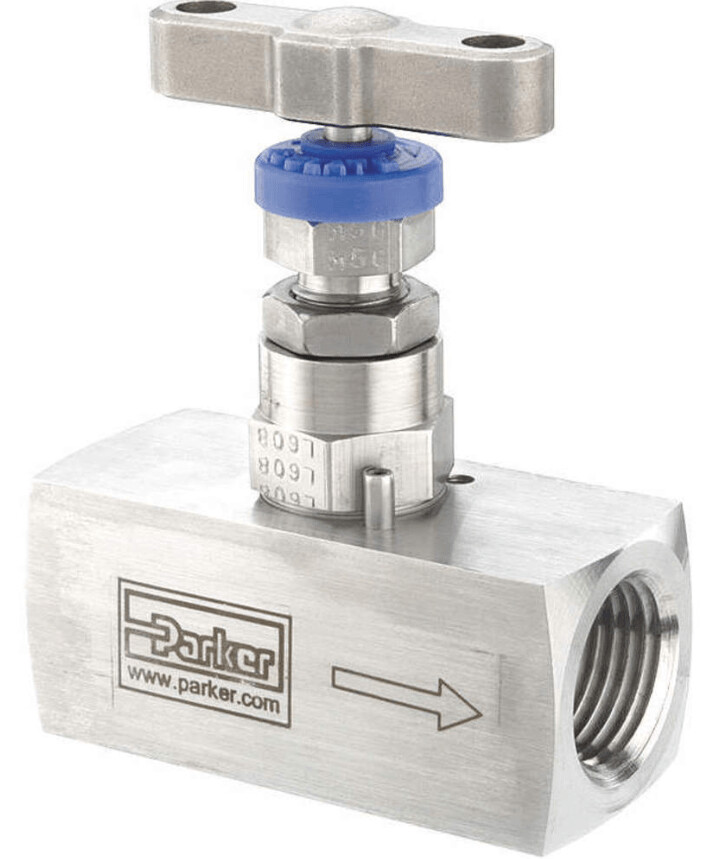

PARKER HNVS8FFHP Needle Valve, Straight Fitting, 10000 psi, 0.35 GPM, FNPT

PARKER HNVS8FFHP Needle Valve, Straight Fitting, 10000 psi, 0.35 GPM, FNPT

Store / Valves & Regulators / Needle Valves
£271.20
Price incl. VAT (20%) £45.20
In stock: 10 available
Product Details

Technical Specifications

  • Meets Certifications: N/A
  • Flow Direction: S traight
  • Mounting Option: N/A
  • Operating Pressure: 10000 PSI / 689 BAR
  • Inlet Port Connection Type: NPT Female
  • Inlet Connection Size: 1/2 Inch
  • Options: N/A
  • Body Material: 316 Stainless Steel
  • Outlet Connection Size: 1/2 Inch
  • Seat Material: Metal to Metal
  • Outlet Port Connection Type: NPT Female
  • Packing Material: PTFE
  • Additional Options: Contact Parker for the following options:
    Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel
    Connection Options: BSPT, BSPP
    Seat Options: 6 MM bore, Regulating/Metering tip, Stellite Tip, PCTFE Soft Tip, PEEK Soft Tip
    Operator Options: Anti-tamper, Handwheel, T Bar Locking
  • Flow Coefficient: 0.35
  • Orifice Size: 4 mm
  • For Fluid Type: General Gaseous and Liquid Media
